Highly integrated low-side current-measurement amplifier simplifies high-accuracy sensing

高度集成的低邊電流檢測放大器簡化了高精度傳感

STMicroelectronics’ TSC1801 low-side current-measurement amplifier integrates matched resistors to set the gain, which simplifies the circuit design, saves bill-of-materials costs, and ensures gain accuracy within 0.15% over the entire temperature range. The fixed gain also eliminates production trimming of external resistors.

意法半導體的TSC1801 低邊電流檢測放大器集成了匹配的電阻器來設置增益，在簡化電路設計的同時，還節省了材料成本，并確保在整個溫度范圍內增益精度在0.15%以內。不僅如此，固定增益還消除了外部電阻器的生產微調。

Combining very high accuracy and wide bandwidth, the TSC1801 is used for motor control, solar power conditioning, high-bandwidth current sensing, and automotive power conditioning. The first gain value offered is 20V/V, with 5V/V and 50V/V models to follow.

TSC1801結合了極高的精度和寬帶寬，可用于電機控制、太陽能調節、高帶寬電流檢測和汽車功率調節。其提供的第一個增益值是20V/V，隨后是5V/V和50V/V型號。

Capable of bidirectional current sensing, the amplifier is optimized for use with precision low-value shunt (sense) resistors at low common-mode voltages. The architecture, dedicated to low-side sensing, permits tightly controlled parameters, including total output error better than 0.5% and offset voltage of ±200μV (max).

該放大器能夠進行雙向電流檢測，經優化可在低共模電壓下搭配使用精密低值分流（檢測）電阻器。該架構專門用于低邊檢測，可嚴格控制參數，包括優于0.5%的總輸出誤差和±200μV（最大）的偏移電壓。

The TSC1801’s 2.1MHz bandwidth rating allows pulse-by-pulse current control even in very high-frequency power-management systems, translating to tangible benefits such as smoother torque adjustment for lower vibration in motor drives. The amplifier’s fast response also ensures rapid over-current detection, protecting sensitive output-stage components against being damaged in the event of a fault.

TSC1801的2.1MHz帶寬額定值允許在非常高頻的電源管理系統中進行逐脈沖電流控制，從而帶來切實的好處（例如更平滑的扭矩調整，以降低電機驅動器的振動）。放大器的快速響應還確保了快速的過電流檢測，保護敏感的輸出級組件在發生故障時免受損壞。

The device can accommodate a wide supply voltage range (2.0V to 5.5V) with an operating temperature range of -40°C to +125°C. Automotive versions are available, qualified and characterized according to AEC-Q100 and Q003 or equivalent, with advanced screening according to AEC Q001 and Q002 or equivalent.

器件可適應較寬的電源電壓范圍（2.0V至5.5V），工作溫度范圍為-40°C至+125°C。另有車規級版本提供，已根據AEC-Q100和Q003或同等標準進行了認證和鑒定，同時依照AEC Q001和Q002或同等標準進行了高級篩選。

In addition to its use in automotive and motor-control applications, the TSC1801 is expected to find applications in industrial, server and telecom infrastructure power conversion, power factor correction and high-accuracy signal conditioning.

除汽車和電機控制領域外，TSC1801還有望在工業、服務器和電信基礎設施的功率轉換、功率因數校正和高精度信號調理中得到應用。

The industrial-grade TSC1801BILT with fixed gain of 20V/V is in production now in a 6-lead SOT23 dual-in-line package, priced from $0.54 for orders of 1000 pieces. The automotive-grade version will be available in Q2 2025.

工業級 TSC1801BILT（固定增益20V/V）現已進入量產階段，采用6引腳SOT23雙列直插式封裝；千片起訂單價0.54美元。其車規級版本將于2025年第2季度上市。

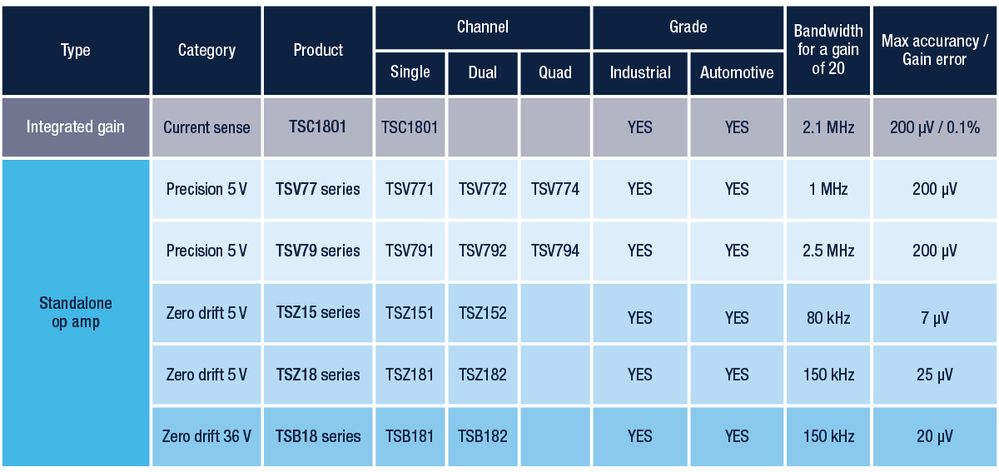

Need more low-side current sense amplifiers? Explore our selection of cutting-edge current sensing solutions.

是否需要更多低邊電流檢測放大器？探索我們精選的尖端電流檢測解決方案。
