STSPIN reference design for smart actuators combines motor control, sensing, and edge AI

STSPIN智能執行器參考設計結合了電機控制、傳感和邊緣AI

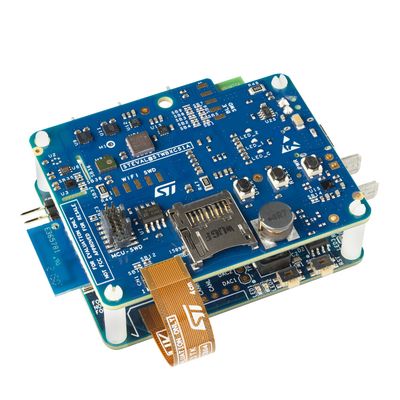

The EVLSPIN32G4-ACT edge AI motor drive reference design simplifies the creation of smart actuators. This design is based on the STSPIN32G4, a 3-phase motor driver for advanced motor control systems. It is designed to work with ST's STWIN.box (STEVAL-STWINBX1), a wireless industrial sensor node, to fast-track the development of systems that merge precise motor control with real-time environmental data analysis and IoT connectivity.

EVLSPIN32G4-ACT邊緣AI電機驅動參考設計簡化了智能執行器的創建。該設計基于STSPIN32G4，一個用于先進電機控制系統的三相電機驅動器。它旨在搭配意法半導體的STWIN.box (STEVAL-STWINBX1，一種無線工業傳感器節點）使用，以快速跟蹤系統開發進度，從而實現精確電機控制與實時環境數據分析、物聯網連接的結合。

The EVLSPIN32G4-ACT brings together motor control advancements with data science to enable the creation of high-performance systems. It leverages the STWIN.box's sensors to monitor actuator engines, while its rapid data-logging capabilities facilitate the development of edge AI and machine learning solutions. This allows for comprehensive system monitoring, anomaly detection, and data-driven optimization.

EVLSPIN32G4-ACT電機控制最新成果與數據科學相結合，助力打造高性能系統解決方案。該開發板充分利用STWIN.box的傳感器進行執行器引擎監測，其快速數據記錄功能為邊緣AI和機器學習解決方案的開發提供便利，從而實現全面的系統監測、異常檢測和數據驅動優化都將成為可能。

At the core of the EVLSPIN32G4-ACT is the STSPIN32G4, which integrates a gate driver, power management, and the STM32G4 microcontroller. The board supports 3-phase motors up to 48V/5A and comes with software for connecting the sensor module, making it easier to start building applications. The STSPIN32G4 motor driver is perfect for a wide range of applications, from automation systems to robots, thanks to its compact size and low power consumption.

EVLSPIN32G4-ACT的核心器件是集成柵極驅動器、電源管理模塊和STM32G4微控制器的STSPIN32G4芯片。該開發板支持高達48V/5A的三相電機驅動，并配有用于連接傳感器模塊的軟件，顯著簡化應用開發流程。得益于緊湊尺寸和低功耗特性，STSPIN32G4電機驅動器非常適合從自動化系統到機器人的廣泛應用。

The EVLSPIN32G4-ACT supports motors up to 250 W and includes various protection features, ensuring a minimal bill of materials and a small form factor. The design offers flexibility with multiple control methods and sensing configurations to suit diverse applications.

EVLSPIN32G4-ACT支持高達250 W的電機，并搭載了多種保護功能，同時確保了較低的材料成本和小巧的外形尺寸。該方案提供了多種控制方法和靈活的傳感配置，以適應不同的應用。

The STWIN.box module is ready for immediate use, featuring an ultra-low power STM32U5 microcontroller, Bluetooth®, Wi-Fi, and NFC transceivers, and a suite of industrial-grade MEMS sensors. The accompanying software includes a data-logging firmware, a Bluetooth® Low Energy application, and a Python SDK, which are ideal for designing edge AI and machine learning solutions.

STWIN.box模塊開箱即用，具有超低功耗STM32U5微控制器、Bluetooth®、Wi-Fi和NFC收發器，以及一套工業級的MEMS傳感器。其附帶的軟件包含數據記錄固件、Bluetooth®低功耗應用和Python SDK，非常適合設計邊緣AI和機器學習解決方案。

Overall, the EVLSPIN32G4-ACT reference design enables the development of intelligent motion control devices, bringing AI to the forefront of industrial automation and smart appliance applications, enhancing smart actuation with fast, efficient data processing and decision-making capabilities.

總體而言，EVLSPIN32G4-ACT參考設計能夠開發智能運動控制設備，將AI帶入工業自動化和智能家電應用的前沿，并通過快速、高效的數據處理和決策能力來增強智能驅動。
